Features & Benefits

• Modularized Hardware Structure, Highly Integrated Software.
• Highly integrated software ISPSoft: Graphical Interface with 5 programming languages
• Enhanced flexibility: Max. 100m between 2 local extension racks
• Improved maintainability: Hot-swapping function keeps the system running

AH500 is a modular system controller designed for almost all types of high-level automation tasks. Its abundant selection of I/O modules and the flexible system structure provide the best solutions for all kinds of system integration requirements. Through remote I/O expandability build up the AH500 main station as a central control system and allocate the remote I/O systems on different floors for HVAC applications, or in different processing stations for the paper-making industry.

Specifications

• Utilizes 32-bit processor
• Excellent program execution speed：LD instruction execution speed 0.02µs
• Max. I/O points:
  - DIO: Max. 4,352 points
  - AIO: Max. 544 channels
  - RIO>100,000 points
• Program capacity：Max 384k steps (1.5MB)
• Data register (D+L) 256k words
• CPU built-in with fully isolated RS-232/422/485,Mini USB ,Ethernet ,full-size standard SD(standard CPU)/SDHC(advanced CPU) card slot
• Abundant selection of DIO modules, AIO modules, temperature control modules, network modules, pulse-train modules and DMCNET / EtherCAT motion control modules.

AH500 EN

Redundant Backplane

• The redundant backplane of the AH Series provides redundant power supply and communication interfaces for a complete control solution.

Applications

• Public construction, water treatment, large factory monitoring system

Specifications

• Utilizes 32-bit processor
• Excellent program execution speed???LD instruction execution speed 0.02µs
• Max. I/O points:
  - DIO: Max. 4,352 points
  - AIO: Max. 544 channels
  - RIO>100,000 points
• Program capacity???Max 1M steps (4MB)
• Data register (D+L) 512 words
• Built-in RS-232/485 multi-modes communication port x1 (RS-232:115.2kbps/ RS-485: 921.6kbps)
• Built-in Ethernet communication port (100Mbps)
• Built-in micro SD card slot (supports max. 32GB)
• Built-in Mini-USB programming port
• System diagnosis /status light/online editing and debug functions
• PLC Link automatic data exchange function
• MODBUS RTU/ASCII, MODBUS TCP
• EtherNet/IP
  - Scanner & Adapter mode
  - Supports I/O connection & explicit message
  - Connections: TCP = 128; CIP = 256
  - RPI: 1~1,000ms
  - 250 words /connection
  - LD/SFC/FBD/IL/ST languages
• 256 interrupts (Timed/IO/External/ Low voltage/Communication)
• Redundant mode only supports timed interrupt
• 2048 timers and counters
• No battery required
• RTC function (max. 30 days after power off)
• NTP network time correction function
• WEB/E-mail/IP Filter function
• Supports redundant system
  - CPU switch-over time: 20ms
  - Built-in sync. Module

• New 32-bit SoC (System on Chip) CPU to enhance execution speed(40 k steps / ms)
• Positioning control function for up to 8-axis motion control via CANopen / 6-axis 200 kHz pulse control
• Robust non-backplane design and patented DIN rail clips for vertical module installation and replacement
• ISPSoft editing software for programming, hardware configuration, network communication, system diagnostics and positioning planning.

Specifications

• New 32-bit SoC (System on Chip) CPU
• Max. I/O: 1,024
• Program capacity: AS300 series 128k steps, AS200 series 64k steps
• Data registers: 60k words
• Extension modules: max. 32(analog modules: max.16 / communication modules: max. 4)
• Executionspeed:upto40Ksteps/ms
• Abundant selection of DIO modules, AIO modules, temperature modules, load cell module and function cards.

Applications

• Automated equipment such as electronics manufacturing, labelling, food packaging, and textile machines

Features & Benefits

• Up to 32 axes can be synchronized (including virtual axes)
  - AS516E (EtherCAT): 16 axes/1ms, max. 16 real axes
  - AS524C (CANopen): 4 axes/2ms, max. 24 real axes
• Offers motion function blocks complying with international standards, supporting Jerk and BufferMode to enable non-stop operation between motion paths
• Supports encoder axes and virtual axes. No need to purchase additional encoder modules Easy-to-use basic motion control features:
  - Single-axis speed/position/homing/torque control commands
• Advanced motion features to fulfill complex processing requirements:
  - Electronic gear, electronic cam and rotary cut applications function blocks
  - G code/group axes commands: supports up to 8-axis linear/arc/helical interpolation
• Supports AS series I/O modules with faster I/O response to CPU
• Control program compatible with new generation DVP-MC series motion CPU, making effortless platform transition between DVP and AS motion controllers
• Supports 3-party EtherCAT slaves (AS516E*), allowing a more flexible system structure.

Application

• Electronics manufacturing
• Packaging
• Printing
• Sealing
• Wire electrical-discharge machining
• Pharmaceutical machines
• Digital board cutting machines
• CNC lathe

Specifications

• Motion Control Network:
  - AS516E: EtherCAT (100 Mbps)
  - AS524C: CANopen DSP402 (1 Mbps)
• Controllable Axes/Time: Up to 32 axes can be synchronized including virtual axes
  - AS516E(EtherCAT): 16 axes/1ms; max. 16 real axes
  - AS524C(CANopen): 4 axes/2ms, 8 axes/4ms; max. 24 real axes
• E-CAM function:
  - Number of E-CAM table: 64
  - Data points of single E-CAM: 2048
• Program/Performance:
  - Program: 20 MB; Symbol: 20 MB: G code: 256KB
  - 1GHz high-speed processor supports high-precision computing for 64-bit LREAL data(Double-precision floating-point format)
• Communication:
  - Programming/serial communication ports: USB(2.0)/RS232/RS485
  - CANopen port: 1 (DS301 master/slave)
  - Ethernet port: 1 (AS516E) / 2(AS524C); supporting MODBUS TCP (Server/Client) and Ethernet/IP(Adapter)
• I/O Interface:
  - Built-in 2 incremental encoder interfaces and 1 SSI absolute encoder interface
  - Onboard I/O: 16DI(supports interrupts) / 8DO
  - Max. I/O: 1,024
  - Module expansion: max. 32 (analog modules: max.16)
• Built-in Mini SD card slot
• Supports RTC function (CR1620 3V battery is required)

Highly integrated CPU design

• PICTURE - Highly integrated CPU design AX3 Series Motion

Features & Benefits

AX-3 CODESYS Control System

• Provides multiple controller solutions
• EtherCAT motion controllers
  - AX-308E / AX-316E / AX-332E CPU supports up to 8 / 16 / 32 EtherCAT axes (AX-332E min. sync time: 1 ms / 32 axes)
  - AX-304EL / AX-364EL CPUs support up to 4 / 64 EtherCAT axes (Point-to-Point mode)
• Logical controllers
  - AX-300N / AX-324N CPUs built-in 0 / 24 DIO points
• Supports AS power, DIO, AIO and temperature expansion modules (max. 32 modules)
• High performance, min. command execution time: 2 ns
• Provides various motion commands: position, velocity, torque, multi-axis interpolation, E-gear, E-CAM, and more
• Built-in 6 ~ 16 DI & 6 ~ 8 DO, incremental encoders, SSI absolute encoder, RS-232 / 422 / 485, Ethernet and EtherCAT interfaces.

Applications

• High-speed 3-axis servo welding machine, high-speed cutting machine, bar feeder, distributed monitor system in production line.

Specifications

Excellent Motion Control

• High-speed pulse output: 4 sets of 200kHz pulse output (DVP40/48/64/80EH00T3)
• Supports max. 4 hardware 200kHz high-speed counters
• Increases many motion control instructions to meet the applications that require high-speed and high-precision
• positioning control such as labeling machines, packaging machines and printing machines
• Offers linear / arc interpolation motion control
• Provides up to 16 external interrupt pointers

Complete Program Protection

• Auto backup function to prevent losing programs and data even when the battery runs out
• Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged
• Up to 4-level password protection protects your source programs and intellectual property

Outstanding Operation Performance

• CPU + ASIC dual processors support floating point operations.
• The max. Execution speed of basic instructions is able to reach 0.24μs.

Flexible Function Extension Modules & Cards

• The multiple selections of extension modules and function cards provide analog I/O, temperature measurement, additional single-axis motion control, high-speed counting, 3rd serial communication port and Ethernet communication card are available.

Applications

• Processing machines, injection moulding machines, packaging machines, precision textile machines, large-scale warehousing, and logistics systems.

Specifications

• CPU:
  - 32-bit high-speed processor
  - Built-in I/O points: 32 / 48 / 64 / 80
• Program capacity: 64k steps
• General register: 64k words
• Communication ports: RS-485 * 2, Ethernet * 1, and CANopen DS301 * 1
• Built-in SD interface (Micro SD)
• Max. I/O points: 256 points (256 inputs / 256 outputs)
• 4 high-speed counters: maximum frequency 200 kHz for each counter
• 4-axis (8 points) high-speed position output at 200 kHz
• Supports a total of 8-axis (CANopen) position outputs
• Supports IEC61131-3 programming (LD, ST, SFC and CFC)

Specifications

• MPU points: 16 / 20 / 24 / 32 / 40 / 60
• Program capacity: 16k steps
• Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
• Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points
• DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution.
• Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes
• New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration
• Application in emerging industry: Exclusive instructions and function blocks designed for PV solar tracker
• Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta@@s AC motor drives
• Password protection: Password for subroutine, user ID, restriction on trial times
• Highly efficient instruction efficient instruction execution

Applications

• HVAC, molding injection machine, big storage management, packaging machine, precise textile machine, logistic system.

Applications

• Single control unit, landscape fountain, building automation.

Specifications

• MPU points: 10/ 14 / 16 / 24 / 32 / 60
• Max. I/O points: 60
• Program capacity: 4k steps
• COM ports: Built-in RS-232 and RS-485 ports (available in 16-60 point models); compatible with Modbus ASCII/RTU protocol

Applications

• 2-axis servo positioning control, material cutting machine (high-speed servo control), main hoist of crane, material clip controlled by servo, equipment in the optoelectronics industry, semiconductor industry, textile industry, energy saving activities and automation in buildings.

Specifications

• High-speed pulse output: 4 sets of 200kHz pulse output
• Supports max. 4 hardware 200kHz high-speed counters
• Increases many motion control instructions to meet the applications that require high-speed and high-precision positioning
• Offers linear / arc interpolation motion control
• Provides up to 16 external interrupt pointers

Complete Program Protection

• Auto backup function to prevent losing programs and data even when the battery runs out
• Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged
• Up to 4-level password protection protects your source programs and intellectual property

Supports DVP-S series left-side and right-side modules

• Add new ETHRW instruction for Ethernet communication

Applications

• Used for PID temperature/humidity control, 2-axis AC motor drive constant speed control, temperature control using an analog signal monitoring of a whole factory. (PLC EASY LINK)

Specifications

• MPU points: 20 (8DI/6DO, 4AI/2AO)
• Max. I/O points: 494 (14 + 480)
• Program capacity: 16k steps
• COM port: Built-in RS-232, RS-485 & USB ports, compatible with ASCII/RTU protocol. Can be master or slave.
• High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100 KHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.
• Built-in High-Speed Counters
• Built-in Analog I/O

Specifications

• MPU points: 10 (4DI/2DO, 2AI/2AO)
• Max. I/O points: 230
• Program capacity: 8K Steps
• Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.
• High-speed pulse output: Supports 2-point independent high-speed pulse output (Y0 of up to 50KHz and Y1 of up to 10KHz).
• Built-in high-speed counter.

Applications

• Printing machine, dying machine, container filler (for prescriptions), work station monitoring in production line.

Specifications

• MPU points: 12 (8DI + 4DO)
• Max. I/O points: 492 (12 + 480)
• Program capacity: 16k steps
• COM port: Built-in RS-232 & 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol.
• Can be master or slave.
• High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100KHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.

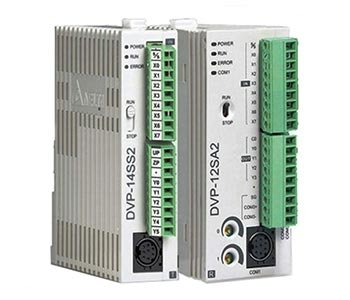

• Extendable to Max. 8 Modules: DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions.
• Built-in High-Speed Counters.

Features & Benefits

• The most complete network type slim PLC in the industry

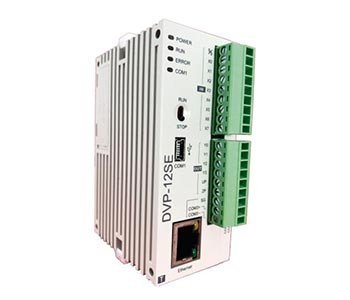

• Provides 8 digital inputs and 4 digital outputs
• Built-in mini USB, Ethernet, and 2 RS-485 ports

Applications

• Remote device monitoring, production line monitoring, building automation, printing machine, container filler (recipe application)

Specifications

• Program capacity: 16k steps
• Data register: 12k words
• Higher execution speed compared to the competition: LD: 0.64μs, MOV: 2μs
• Built-in Ethernet supports MODBUS TCP and Ethernet/IP
• IP Filter function is a firewall that offers the first line of defense and provides protection from malware and network threats
• Supports DVP-S series left-side and right-side modules
• No battery required. Maintenance-free.

Applications

• Spinning machine, conveyer belt (rotation speed control), winding machine (tension control)

Specifications

• MPU points: 14 (8DI + 6DO)
• Max. I/O points: 494 (14 + 480)
• Program capacity: 8k steps
• COM port: Built-in RS-232 & RS-485 ports, compatible with Modbus ASCII/RTU protocol. Can be master or slave.
• High-Speed Pulse Output: Supports 4 points (Y0 ~ Y3) of independent high-speed (max. 10kHz) pulse output
• Supports PID Auto-tuning：DVP-SS2 saves parameters automatically after the PID auto temperature tuning is completed.
• Built-in High-Speed Counters.
